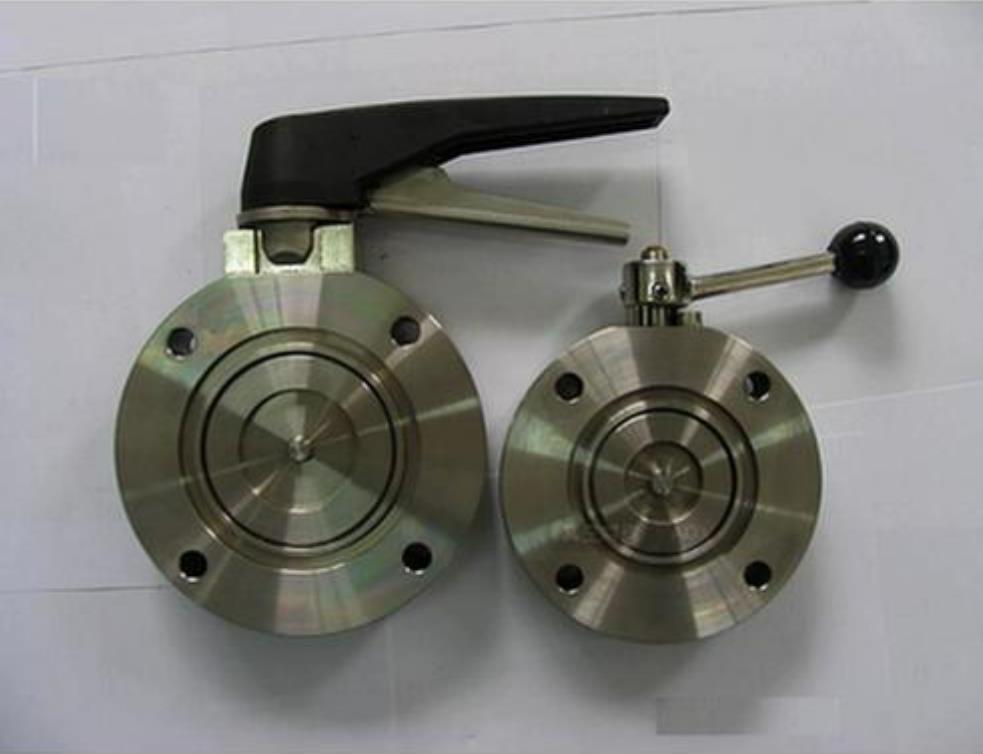

手动高真空蝶阀主要技术性能
|
适用范围：Applicability |
105～1.3×10-4Pa |
|
阀门漏率：Valve Leak Rate |
≤1.3×10-4Pa.L/S. |
|
适用温度：Applicable Temperature |
-25～+80℃(丁腈橡胶)
-30～+150℃(氟橡胶) |
|
气源压力：Mains Voltage |
0.4～0.6MPa |
|
安装方向：Mounting Direction |
任意 |
手动高真空蝶阀主要零件材料
阀体、阀盖、阀杆：碳钢或不锈钢
密封件：丁腈橡胶、氟橡胶
手动高真空蝶阀外形及连接尺寸(mm)
|
Model
型号 |
DN |
D |
Do |
D1 |
B |
H |
B1 |
L |
n-φc |
|
GID-40 |
40 |
85 |
70 |
44 |
22 |
162 |
90 |
104 |
4-φ7 |
|
GID-50 |
50 |
110 |
90 |
55 |
22 |
175 |
90 |
104 |
4-φ7 |
|
GID-65 |
65 |
125 |
105 |
70 |
26 |
198 |
102 |
140 |
4-φ9 |
|
GID-80 |
80 |
145 |
125 |
85 |
30 |
208 |
102 |
140 |
4-φ9 |
|
GID-100 |
100 |
170 |
145 |
105 |
30 |
220 |
102 |
140 |
4-φ12 |
|
GID-150 |
150 |
220 |
195 |
156 |
35 |
272 |
115 |
164 |
8-φ12 |
|
GID-200 |
200 |
275 |
250 |
208 |
40 |
330 |
205 |
190 |
8-φ12 |
|
GID-250 |
250 |
330 |
300 |
258 |
45 |
335 |
205 |
190 |
8-φ14 |
|
GID-300 |
300 |
380 |
350 |
308 |
55 |
426 |
152 |
247 |
8-φ14 |
|
GID-400 |
400 |
500 |
465 |
410 |
60 |
520 |
180 |
308 |
8-φ18 |
|
GID-500 |
500 |
600 |
565 |
510 |
80 |
643 |
220 |
378 |
12-φ18 |
|
GID-600 |
600 |
710 |
670 |
610 |
100 |
760 |
270 |
524 |
12-φ21 |
|
GID-800 |
800 |
920 |
815 |
815 |
130 |
962 |
320 |
648 |
20-φ21 |
|
GID-1200 |
1200 |
1440 |
1280 |
1280 |
150 |
1360 |
385 |
1480 |
36-φ19 |
