船用法兰青铜填料旋塞阀性能规范Technical Data |
|
公称压力Nominal Pressure(MPa) |
公称通径Nominal Diameter(mm) |
适用介质Applicable Medium |
|
0.6 |
20 - 80 |
海水、淡水、滑油、燃油
Sea water. Fresh water. Lubricanting oil, Fuel oil |
|
|
| |
|
船用法兰青铜填料旋塞阀主要零部件材质Materials of Main Parts |
|
零件名称Parts Name |
材料Material |
|
|
名称Name |
牌号Marks |
|
阀体Body |
灰铸铁、铸锡青铜Gray Cast lron/Cast Tin Bronze |
HT200、ZCuSn102n2或ZCuSn5Pb52n5 |
|
塞芯Core |
铸锡青铜Cast Tin Bronze |
ZCuSn102n2或ZCuSn5Pb52n5 |
|
|
| |
|

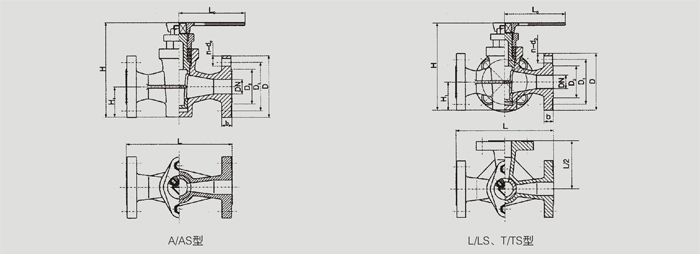

船用法兰青铜填料旋塞阀A型、L型、T型基本尺寸Dimensions |
|
公称通径 |
结构尺寸
Structure Dimension |
壁厚 |
法兰Flange |
螺栓Bolt |
手柄
Handle |
参考重量Weight(kg) |
|
DN(mm) |
L
|
H≈
|
Hi
|
Thickness
6 |
D
|
Di
|
D2
|
do
|
b
|
n个
|
Th
|
L0 |
A型 |
L型 |
T型 |
|
20 |
145 |
141 |
42 |
7 |
95 |
68 |
48 |
13 |
14 |
4 |
M12 |
125 |
3.01 |
3.85 |
3.79 |
|
25 |
155 |
151 |
43 |
7 |
105 |
73 |
56 |
13 |
14 |
4 |
M12 |
140 |
3.84 |
4.8 |
4.8 |
|
32 |
165 |
170 |
50 |
7 |
115 |
83 |
64 |
15 |
15 |
6 |
M14 |
160 |
4.7 |
5.7 |
5.6 |
|
40 |
190 |
193 |
57 |
7 |
125 |
93 |
74 |
15 |
16 |
6 |
M14 |
180 |
6.6 |
8.4 |
8.3 |
|
50 |
205 |
245 |
67 |
7 |
135 |
103 |
84 |
15 |
16 |
6 |
M14 |
230 |
10.2 |
12 |
11.8 |
|
65 |
225 |
286 |
81 |
8 |
155 |
123 |
104 |
15 |
15 |
6 |
M14 |
250 |
13.4 |
16.7 |
16.3 |
|
80 |
245 |
328 |
100 |
8 |
170 |
138 |
118 |
15 |
15 |
8 |
M14 |
320 |
19.7 |
21.8 |
21.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
船用法兰青铜填料旋塞阀AS鹫、LS型、TS型基本尺寸Dimensions |
|
公称通径 |
结构尺寸
Structure Dimension |
壁厚 |
法兰Flange |
螺栓Bolt |
手柄
Handle |
参考重量Weight(kg) |
|
DN(mm) |
L
|
H≈
|
Hi
|
Thickness
6 |
D
|
Di
|
D2
|
do
|
b
|
n个
|
Th
|
L0 |
AS型 |
LS型 |
TS型 |
|
20 |
150 |
141 |
42 |
7 |
90 |
65 |
50 |
1 1 |
14 |
4 |
M10 |
120 |
3 1 |
3 9 |
3 8 |
|
25 |
160 |
151 |
43 |
7 |
100 |
75 |
60 |
1 1 |
14 |
4 |
M10 |
140 |
4 9 |
4 9 |
4 8 |
|
32 |
180 |
170 |
50 |
7 |
120 |
90 |
70 |
14 |
16 |
4 |
M12 |
160 |
5 8 |
5 8 |
5 7 |
|
40 |
200 |
193 |
57 |
7 |
130 |
100 |
80 |
14 |
16 |
4 |
M12 |
180 |
9 1 |
9 1 |
9 0 |
|
50 |
230 |
245 |
67 |
7 |
140 |
1 10 |
90 |
14 |
16 |
4 |
M12 |
230 |
12 4 |
12 4 |
12 2 |
|
65 |
290 |
286 |
81 |
8 |
160 |
130 |
110 |
14 |
16 |
4 |
M12 |
250 |
17 7 |
17 7 |
17 3 |
|
80 |
310 |
328 |
100 |
8 |
190 |
150 |
128 |
18 |
18 |
4 |
M16 |
320 |
23 9 |
23 9 |
23 4 | |
